    Wheel Type Acrylic Laser Engraving Machine CO2 Closed Laser 300*200mm, Multicolor,Mill Many Things

    Ask Lasest Price
    Brand Name : refine
    Model Number : LM-320
    Certification : CE
    Price : USD450 /unit
    Payment Terms : T/T, Western Union
    Supply Ability : 300 units/ month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    Wheel Type Acrylic Laser Engraving Machine CO2 Closed Laser 300*200mm, Multicolor,Mill Many Things

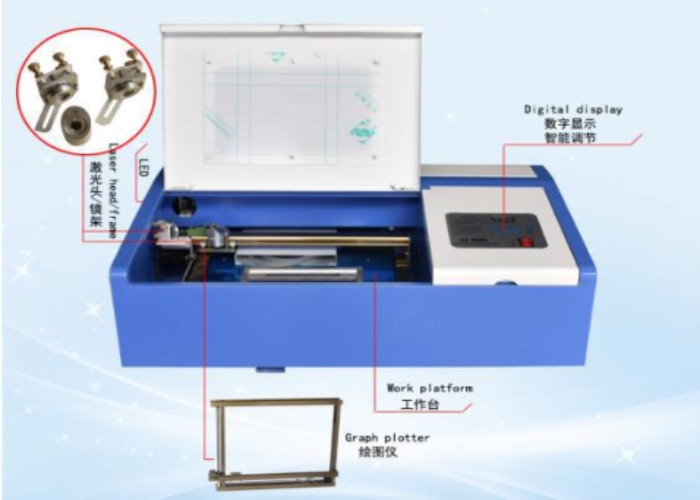

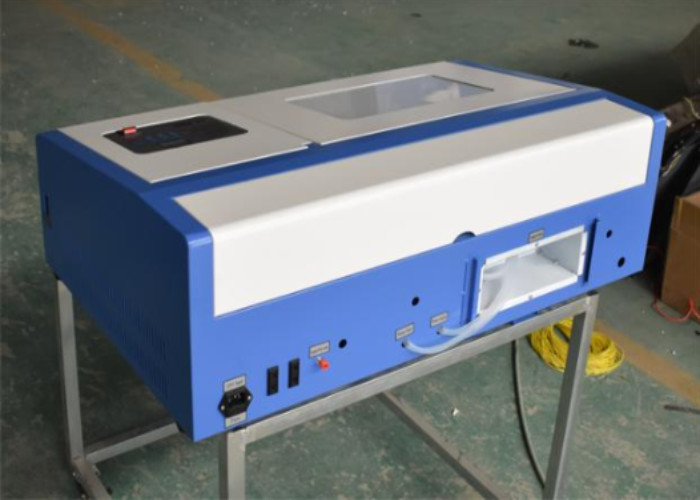

    300*200mm​ Laser engraving machine


    Technical Parameter:

    ModelLM-320
    Control systemM2M-USB high speed motherboard
    Motor42 Stepper motor
    GuideWheel type
    Laser typeCO2 closed laser
    Laser power40W/50W(Optional)
    Minimum character1mm
    positioning accuracy0.1mm
    Work benchFixture type
    Working area300×200mm(X-Y)
    Engraving speed1-400mm/s
    Working voltageAC220±10% 50Hz /AC110±10% 60Hz
    Working temperature0-45℃
    Cooling modeWater-cooling
    Supporting of file FormatsPLT/AI/DXF/BMP/JPG
    Support softwareCoreldraw/Corellaser/M2
    Computer systemWin7/win10/XP
    Machine size40W-L800*W500*H250mm 50W-L905*W500*H250mm
    Packaging size40W-L965*W660*H395mm 50W-L1040*W665*H395mm
    Weight32kg
    PackingPlywood

    Accessories: lock, data line,Power line, Instructions,Smoke tube, Fan, Water pump, CD


    Applicable materials:

    Laser engraving machine can work with most materials, such as Cloth, leather, wool, acrylic,

    Organic glass, board, plastic, rubber, crystal, ceramic tile, bamboo product, jade, granite, marble, resin and other non-metal materials.

    Apply to a small area of the arts and crafts engraving/cutting processing; the double color plate, wood, bamboo, organic glass plate, Graphics and text engraving all kinds of cloth, illustrations, vivid image.


    Wheel Type Acrylic Laser Engraving Machine CO2 Closed Laser 300*200mm, Multicolor,Mill Many ThingsWheel Type Acrylic Laser Engraving Machine CO2 Closed Laser 300*200mm, Multicolor,Mill Many ThingsWheel Type Acrylic Laser Engraving Machine CO2 Closed Laser 300*200mm, Multicolor,Mill Many ThingsWheel Type Acrylic Laser Engraving Machine CO2 Closed Laser 300*200mm, Multicolor,Mill Many ThingsWheel Type Acrylic Laser Engraving Machine CO2 Closed Laser 300*200mm, Multicolor,Mill Many Things


    FAQ


    Q1. How to get the most suitable machine and best price

    Please tell us the material you want to engrave or cut? Max size and thickness?


    Q2. If we don't know how to use the machine, can you teach us?

    Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.


    Q3.How about your after-sales service?

    we offer you 24 hours service by phone, Skype or Whatsapp.


    Q4. Quality Control:

    The whole production procedure will be under regular inspection and strict quality control. The

    complete machine will be tested to make sure they can work very well before being out of factory.

    Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.


    Q5. How we pay you?

    A. Consult us about this product on line or by e-mail.

    B. Negotiate and confirm the final price , shipping , payment methods and other terms.

    C. Send you the proforma invoice and confirm your order.

    D. Make the payment according to the method put on proforma invoice.

    E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

    And 100% quality check before shipping.

    F. Send your order by air or by sea.
