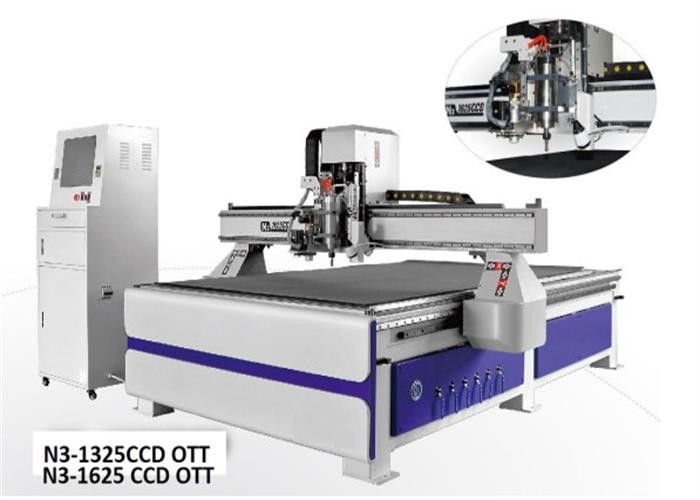

CNC Contour Cutting / Engraving Machine hybrid servo, low noise

Standard features:

1: Contour is output by the program automatically, which saves much time and work for users
2: Industrial steel pipe frame with stable moving, low noise and high-precision
3: High-precision helical rack pinion in X Y, plus linear rail, ensure the high-precision
4: With Leadshine hybrid servo, low noise and high-accuracy
5: It can mark the contour by camera eye also can do the 3D cutting, multi-functional in one machine

Applicable fields:

Oscillating knife: to cut KT board, PVC (max thickness 7mm), leather, fabric (one layer) with OTT
Spindle: to cut acrylic, MDF, solid, aluminum, brass by the spindle motor
Easily exchange double-systems between CNC router and CCD cutter

Technical parameters

Model: N3-1325CCD OTT
Table size: 1600*2630mm
Working size: 1520*2500*200mm
Max material height: 200mm
Spindle power: water cooling 3kW+OTT
Spindle: RPM0-24000rpm
Tool diameter: 3.175, 4, 6, 8, 12.7
Drive: hybrid Servo
OTT drive: Leadshine AC Servo
CNC: Weihong + CCD
Mechanical structure: industrial square steel pipe
Transmission: ball screw for Z-axis, pully-gear rack for X, Y
X, Y, Z guide rails: linear rails
Repositioning accuracy: <0.03mm/300mm
Max speed: 20000mm/min
File transfer: USB
File format: HPGL or standard G-code
Power supply: 220V AC or 380V, 50-60Hz
Tabletop: PVC and aluminum-alloy
Dust collector: high-volume vacuum
External dimensions: 2350*3060*1650mm
Weight: 1200/1500kg
Vacuum pump: air cooling or water cooling 7.5kW/380V

Payment terms:
1) We accept T/T, Western Union, L/C (depends on order amount)
2) Sight L/C is accepted if order amount exceeds USD 20000

Company introduction:
Hefei Gere-tech international company limited is a firm with 10+ years of history
We devote ourselves to R and D on signage and sublimation industries
Ours refine brand cutting plotters and heat press are very popular in North America, Europe, Latin America, Asia and Africa
We always provide quality products, reasonable prices as well as best possible after-service
We offer a quality guarantee
Our service time is 7 days x 15 hours/day
We have superior and steady sales + service staff, which is our biggest advantage among most Chinese competitors

Hefei Gere-tech international co, Ltd is an integrated share-holding firm with a business history of 15 years. The company has been growing constantly ever since .we are specialized in Research and Development, and sales of signage Machinery, Sublimation products, Sign Supplies ,and etc.

We have 5 own-controlled factories and a few more cooperative ones,so far, we have developed overseas dealers in the world , included Europe, North America,Latin America,South-eastern Asia,Middle-east, and etc.our own brand Refine has been enjoying great popularity in world market since the years of 2004.since 2017 year, we developed new brands Newfuture & Hobbycut.The new branding products are for updated machines,which are also enjoying excellent commands in some countries.

Our Refine brand products have enjoyed great popularity in world market. Our Anual Turnover reaches 10million U. S. Dollars. So far, we have exported our products to the countries and regions in Europe, North America, Middle-east, South America, and etc.

Furthermore, we are continuously working hard in development and research of more and more products to fit world markets.

Our mission is to pursue excellence. Customers' satisfactory is what we are running for!
Our staff is welcoming all customers abroad and anticipate long-term cooperation.
We believe Gere-tech is your best partner from China.
